Symons Cone Crusher

Symons cone crusher can be widely used for metal and nonmetal mining, cement, construction, metallurgy, iron ore, nonferrous metal ores, granite, quartzite, sandstone, pebbles, etc.br /> Product advantages:
1、High crushing
2、Energy efficient
3、Multi crushing chamber
4、Easy to clean cavity
5、Stable performance
6、Robust
7、Easy maintenance
8、Tightness
9、sheet content of less
Buy Now:21-58380935
Symons Cone Crusher

Introduction:The symons crusher is widely used in fields of metal and non-metal mining, cement, construction,metallurgy industries. It can used to crush materials like iron ore, ferrous minerals, granite, limestone, quartz, sandstone, pebbles and so on.
        The Symons cone crusher produced by our company has many advantageous features. With reliable property, firm structure and stable operation, the machine can produce uniform-sized finished products.
        It is user-friendly and economical and with various chambers easy to clean and maintain.
In addition, the operating condition is sealed with glycerin.

Compositions:It comprises the body frame, the horizontal shaft, the mobile cone body, the balancing wheel, the eccentric sleeve, the fixed cone, the mobile cone, the hydraulic converter, the lubrication system, the hydraulic system, the control system and so on.

Working Principle:Driven by the motor, the V-belt, the belt wheel, the transmission shaft, the small and big cone cogwheels will drive the eccentric sleeve to rotate. The shaft swings under the force of the eccentric shaft sleeve, which makes the surface of the cone coming close to the surface of the concaves. The material is crushed continuously in the loop-like chamber which comprises the fixed cone and the mobile cone. Particles with required sizes will be discharged from the bottom.

Advantages:1.Various types of chambers available for crushing material down to coarse, medium, and fine size 2.The unique sealing system makes parts more durable. 3.High reduction ratio, high efficiency, fine finished products with less slivers 4.Because of the uniquely designed chamber and the layer-by-layer crushing method, fine finished products are produced continuously. 5.With long crushing arm, high impact and high reduction ration, the efficiency is very high. 6.Low operating cost, reasonable and firm structure, and long service life with durable wear parts with low maintenance cost 7.The lubrication system reduces the pressure on the mobile shaft, the cogwheel and the body frame. 8.The hydraulic cleaning system is easy to operate, energy-saving and can reduce the downtime. 9.The springs will protect the crushing chamber from the damage of unknown metals. 10.Various crushing chambers which are easy to clean. 11.Reliable performance.

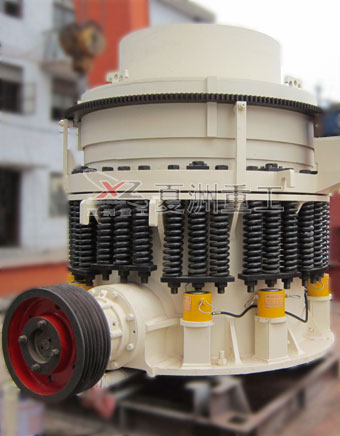

Symons cone crusher product map

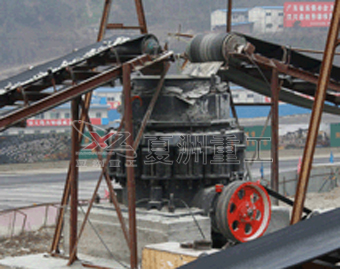

Symons cone crusher product map

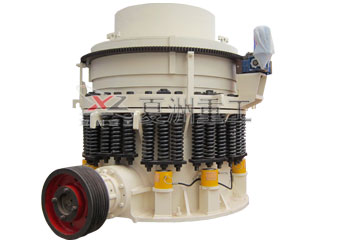

Symons cone crusher product map
Symons cone crusher product map

CSB Series Symons cone crusher technical parameters:

Model Dia.of cone
(mm)
Cavity

Inch Discharge Opening Range
port size
(mm)
Counter shaft
(r/min)
Power
(kw)
Capacity
(t/h)
Overall dimension
(mm)
Weight
(t)
Opening
(mm)
Setting
(mm)
CSB75 900
(3')
Fine type 83 102 9-22 580 75 45-91 2821×1880×2164 15
Coarse 159 175 13-38 59-163
CSB110 1200
(4')
Fine type 127 131 9-31 485 110 63-1881 2821×1974×2651 20
Medium 155 156 13-38 100-200
Coarse 178 191 19-51 141-308
CSB160 1295
(4 1/4')
Fine type 109 137 13-31 485 185 109-181 2800×2342×2668 27
Medium 188 210 16-38 132-253
Coarse 215 241 19-51 172-349
CSB240 1650
(5 1/2')
Fine type 188 209 16-38 485 240 181-327 3911×2870×3771 55
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
CSB315 2134
(7')
Fine type 253 278 19-38 435 315 381-726 4613×3251×4732 110
Medium 303 334 25-51 608-998
Coarse 334 369 31-64 789-1270



CSD Series Symons cone crusher technical parameters:

Model Dia.of cone
(mm)
Cavity
Cavity
Inch Discharge Opening Range
port size
(mm)
Counter shaft
(r/min)
Power
(kw)
Capacity
(t/h)
Overall dimension
(mm)
Weight
(t)
Opening
(mm)
Setting
(mm)
CSD75 900
(3')
Fine type 13 41 3-13 580 75 27-90 2821×1880×2410 15
Coarse 33 60 3-16 27-100
CSD110 1200
(4')
Fine type 29 57 5-16 485 110 50-132 2560×1942×2928 20
Medium 44 73 10-16 90-145
Coarse 56 89 13-19 141-181
CSD160 1295
(4 1/4')
Fine type 29 64 3-16 485 160 36-163 2800×2342×2668 27
Medium 54 89 6-16 82-163
Coarse 70 105 10-25
CSD240 1650
(5 1/2')
Fine type 35 70 5-13 485 240 90-209 3917×2870×3771 55
Medium 54 89 6-19 136-281
Coarse 98 133 10-25 190-336
CSD315 2134
(7')
Fine Type 51 105 5-16 435 315 190-408 4130×3251×4454 110
Medium 95 133 10-19 354-508
Coarse 127 178 13-25
